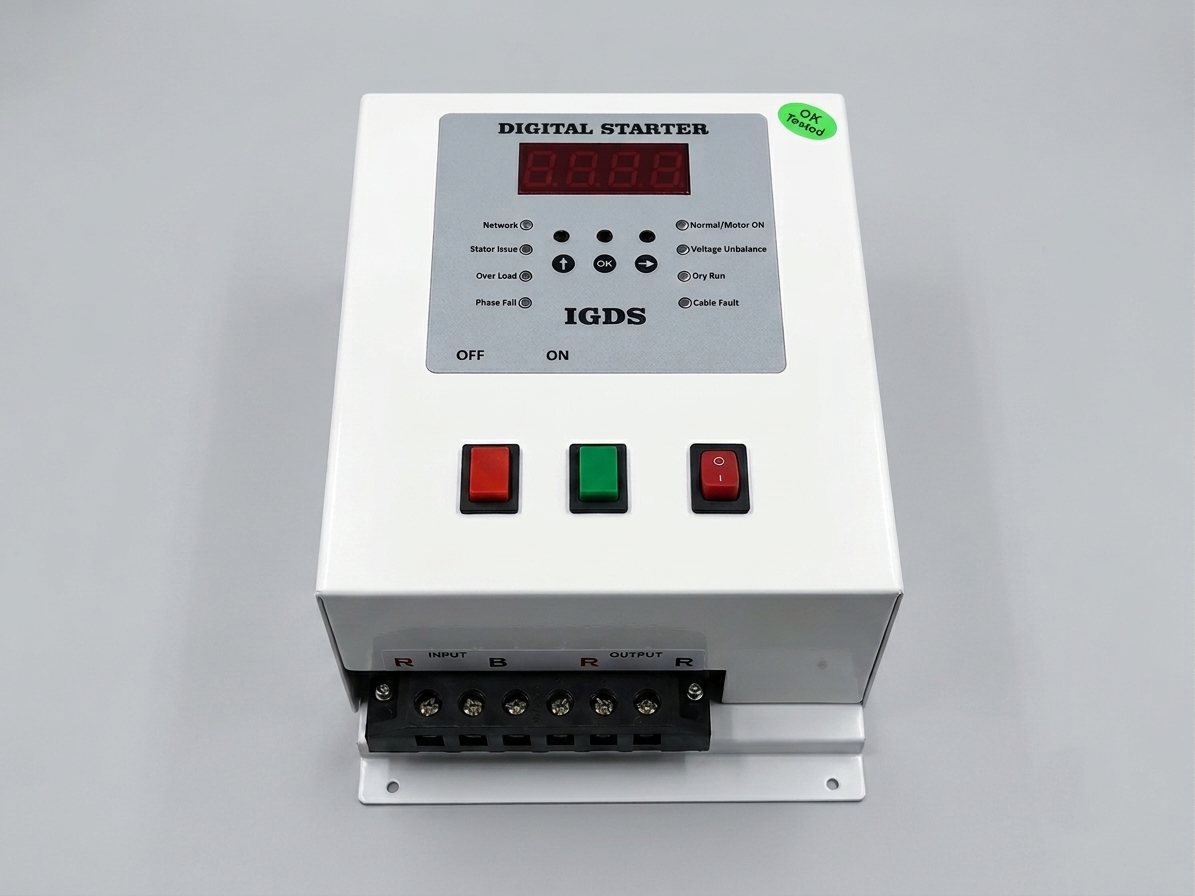

All in one starter, protection and timer
For industrial motors from 2HP to 7.5HP on a 415VAC supply, combining starting, protection, measurement and timed operation in a single panel unit.
Features
- All in One (Starter, Protection, Timer)
- In-built control switching device algorithm
- 4 digit seven segment display
- Manual operation
- Timer facility
- Power restore auto start (timer enabled)
- Voltage, current and power factor measurement on display
- Adjustable low and high voltage settings
- 3 tactile switches for settings
- On/Off switches for panel operation
- Easy to install
Ratings
- Load capacity: 2HP – 7.5HP
- Operating voltage: 415VAC
- Internal CT capacity: 20A
