Designed in house around NVIDIA Jetson series carrier board

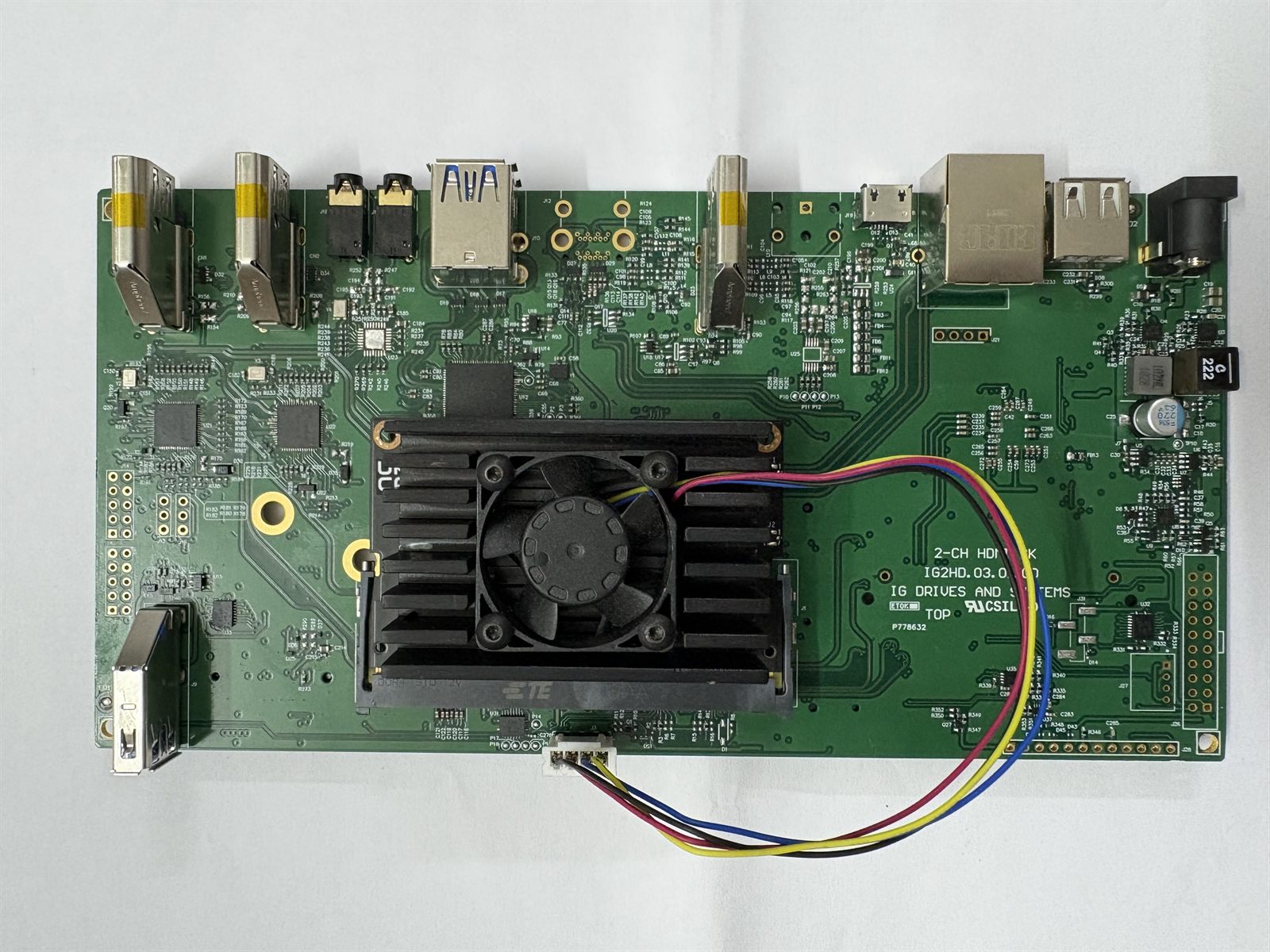

A custom carrier board bringing the NVIDIA Jetson Nano into an embedded product, with the connector set and interfaces matched to the application rather than to a general-purpose development kit.
Overview
A compact and flexible custom carrier board for NVIDIA Jetson Nano, TX2 and Xavier platforms, designed to provide high-speed connectivity, expansion options and development flexibility for AI, vision, medical and industrial applications.
Key features
- 2 × MIPI CSI-2 camera interfaces
- M.2 slot for high-speed SSD storage
- Mini PCIe interface for Wi-Fi, Bluetooth and GSM/4G modules
- 2 × USB 2.0 ports
- 1 × USB 3.0 port
- Gigabit Ethernet interface
- HDMI display output
- GPIO, I²C, SPI and UART interfaces
- Dedicated power, reset and recovery controls
- API support for application development and system integration
- Customisable hardware and software interfaces
Specification
- Platform — NVIDIA Jetson Nano / TX2 / Xavier
- Camera — 2 × MIPI CSI-2
- Storage — M.2 SSD
- Wireless expansion — Mini PCIe
- USB — 2 × USB 2.0, 1 × USB 3.0
- Network — Gigabit Ethernet
- Development — API / SDK support
- Application — AI vision, video processing, medical systems, industrial automation and edge computing
