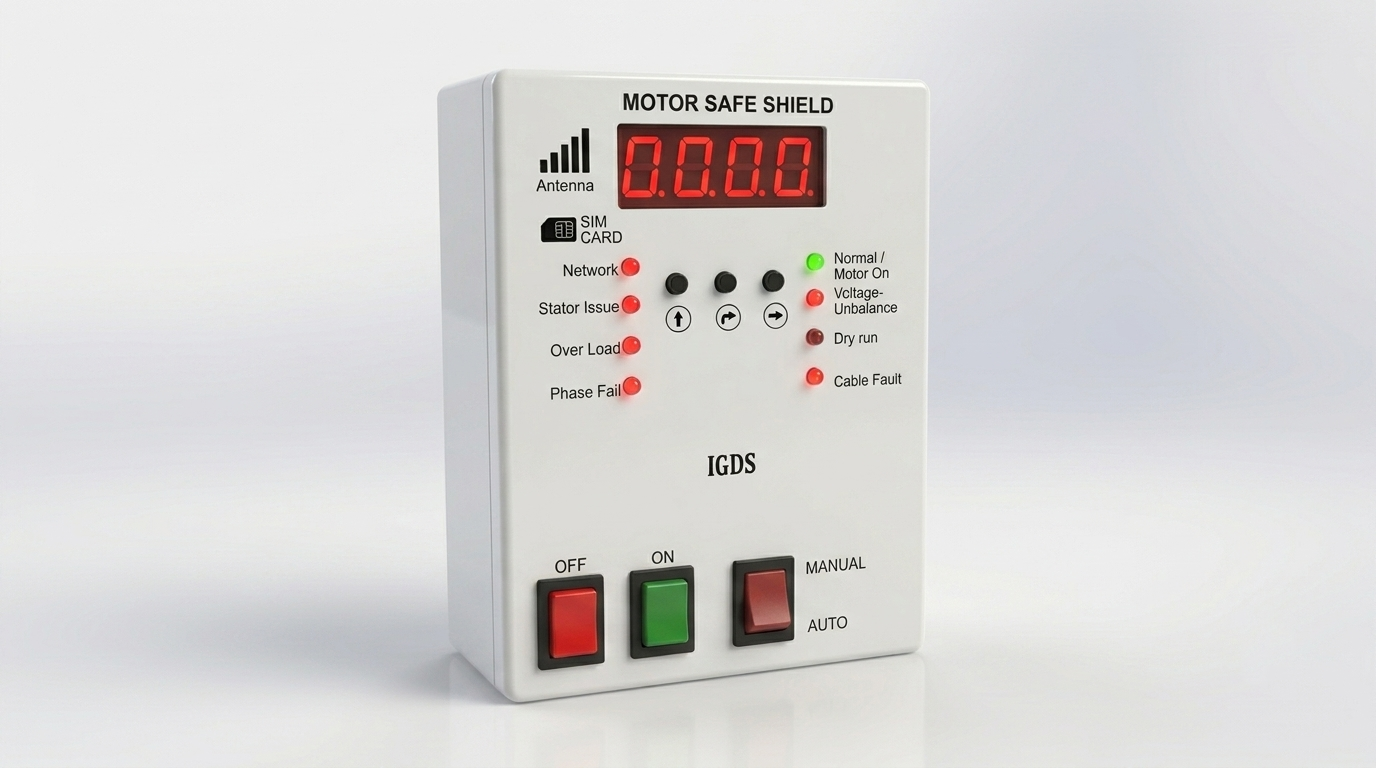

Run and rest cycles, set once
Runs the pump for a set period and rests it for a set period, repeating automatically — so a bore that cannot sustain continuous draw is given time to recover.
Features
- All in One (Starter, Cyclic Timer, Protection)
- In-built control switching device algorithm
- 4 digit seven segment display
- Manual and auto operation as per user settings
- Cyclic timer, lowest setting 1 minute
- Power restore auto start (timer enabled)
- Voltage, current and power factor measurement on display
- Adjustable low and high voltage settings
- 3 tactile switches for settings
- On/Off switches for panel operation
- Easy to install
Protections
- Motor stator problem
- Cable faults
- Motor side single phasing
- Line to line faults
- Triple line faults
- Line to earth faults
- Triple line to earth faults
- Winding unbalance
- Dry run / under load
- Overload
- Under voltage
- Over voltage
- Phase fail
- Phase sequence change
- Voltage unbalance
Ratings
- Load capacity: 2HP – 7.5HP
- Operating voltage: 415VAC
- Internal CT capacity: 20A
